VET-14 4D Echo Color Doppler Trolley Type Vet Ultrasound

$0.00

Model: VET-14

Real Time 4D Color Doppler Ultrasound:
1. Monitor: 21.5 inch LED + 13.3 inch touch screen
2. Intel i5 processor, 4G RAM, SSD 120G+1T
3. Four active probe sockets
4. B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, PDI Color, Dual Color Simultaneous 2D/Color Compound, PW, CW, Duplex/Triplex, Directional PD, 2D, 3D, 4D TDI, Auto IMT, Free hand Elastography, Panoramic Imaging, Trapezoid Imaging, Color M Mode
5. Depth: 20-360mm
6. External interfaces: USB, VIDEO (PAL-D), HDMI, DICOM, DVD/CD

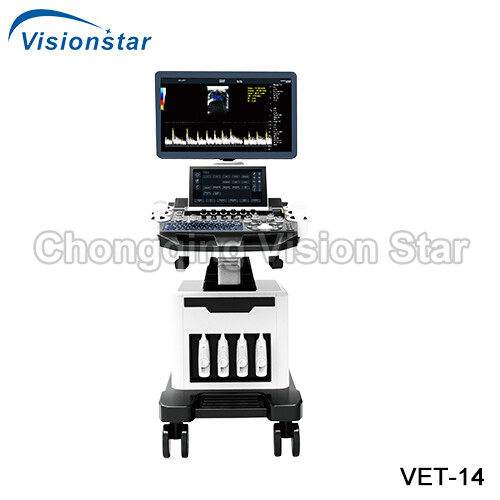

VET-14 4D Echo Color Doppler Trolley Type Vet Ultrasound

Applications:

For bovine, ovine, equine, canine, feline and other domestic animals, animals for experiments, wildlife, and some aquatic animals. It is applicable for the inspection of various animals’ clinical abdomen, thoracic cavity, heart, tendon, small organs, eyes, reproduction system, etc.

Features:

1. Multiple Languages support, EN/RU/SP/PTARB/VN/ID/DE/FR.

2. 5 inch LCD display and 13.3 inch touch screen.

3. Newly designed ergonomic console.

4. Stereo audio system.

5. 4 activated probe ports.

6. Built-in graphic management system.

7. Front and rear handles.

8. 4 wheels with locks.

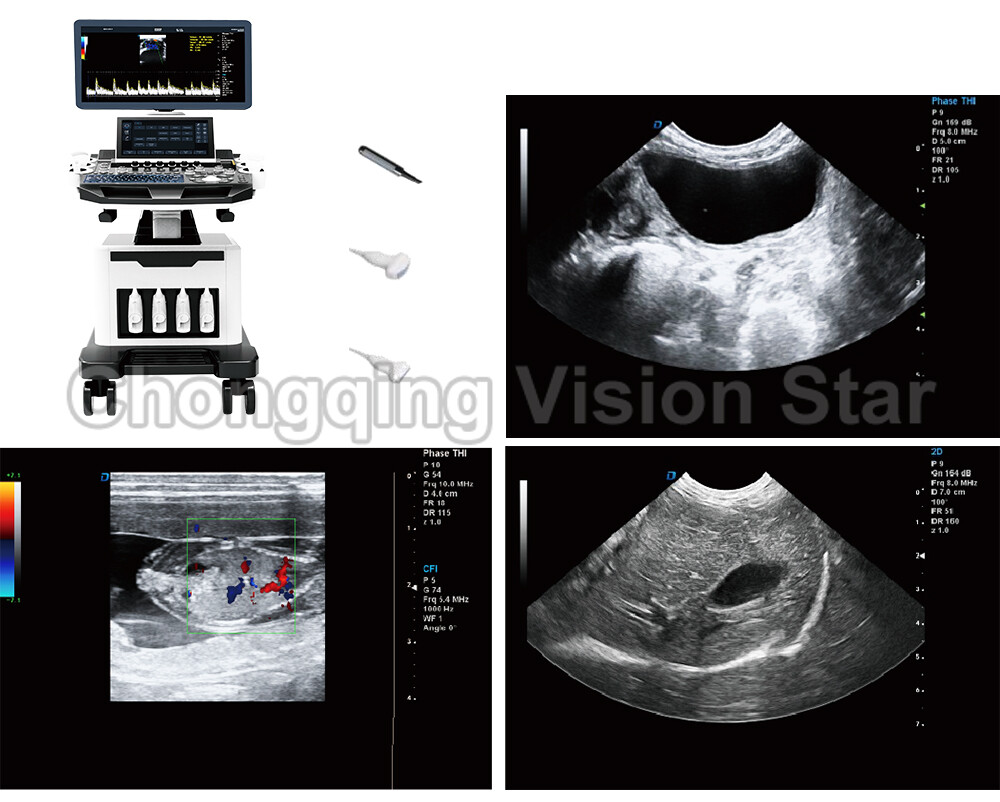

Advanced Ultrasonic Imaging Technology：

Tissue Doppler Imaging (TDI)

The Tissue Doppler Imaging allows you to quantitatively evaluate local myocardial movement and function, with quantitative velocity parameter in TDI mode. Provide convenience for clinicians.

1. Free Hand Elastography:

The differences in tissue responses to pressure are detected and visualized in real-time by the elastgraphy algorithms through different graphical representations, which can be particularly helpful in analyzing breast, thyroid and musculoskeletal structures.

2. Anatomic M Mode:

This advanced cardiac technology features three cursors which can be set at any position and angle simultaneously. Reducing time needed for every patient, while maintaining diagnostic precision in addition to the standard cardiac features, acquiring all information even in hard-to-scan situations with difficult heart positioning.

Optional Probe
Phased array probe	Convex probe
Linear array probe	Veterinary micro-convex probe
Veterinary trans -rectal probe
